Worm shafts / Worm wheels

The necessary form of the shaft requires utmost precision in the production of these drive components. This especially belongs to the core competences of Heinrich Höner.

Premium worm shafts: Milled, spiralled and ground

Hochwertige Schneckenräder und Schneckenwellen

Worm wheels and worm shafts consist of a ´worm` in the form of a screw, which by means of rotation spins into an interlocking gear wheel or worm wheel. We produce worm shafts by means of precise milling, spiralling and grinding and offer them as modules 1 – 14 with a diameter of up to 320 mm. A slope is possible from 0.25 – 315 mm, with a maximum helix angle of 40 degrees. Our worm wheels are offered as the same modules, however, with a diameter of 15 – 630 mm and a shaft centre distance of up to 450 mm.

Worm shafts and Worm wheels

Schneckenwelle

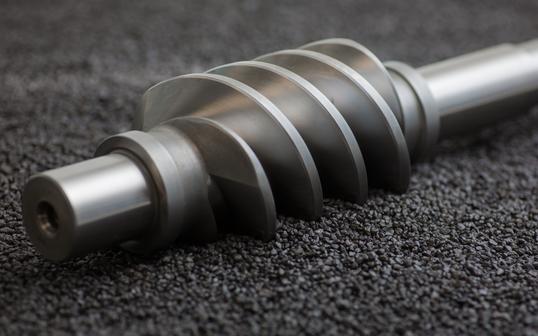

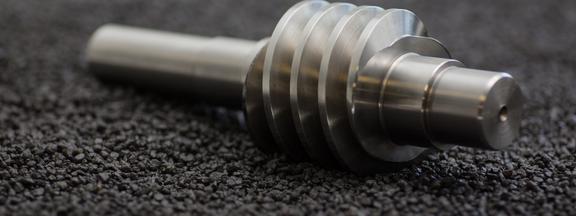

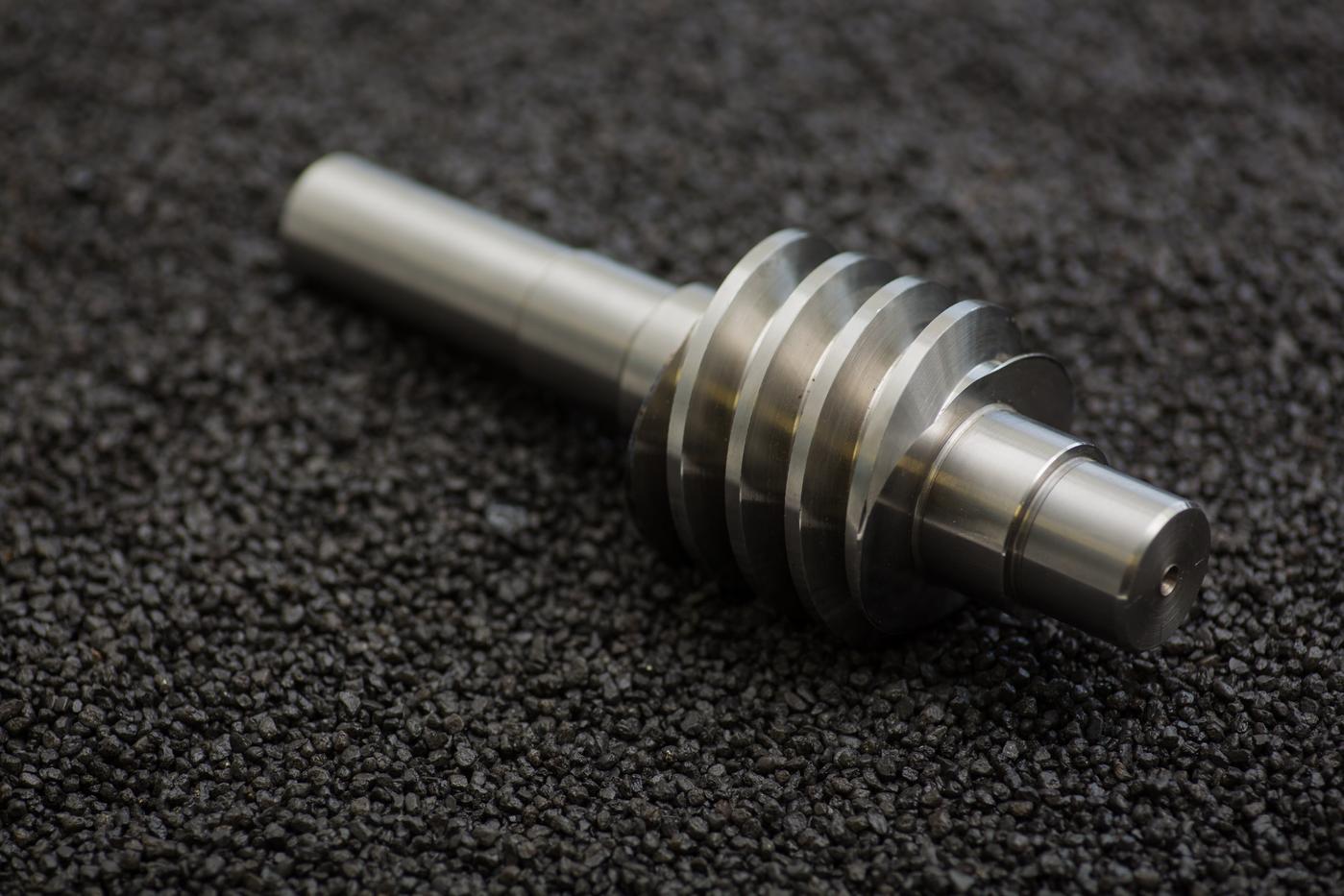

Worm Shafts

Modules

of 1 to 14

Diameters

up to 320 m

Please note

milled, whirled, ground
Incline 0.25 - 315 mm
Incline angle up to 40 °

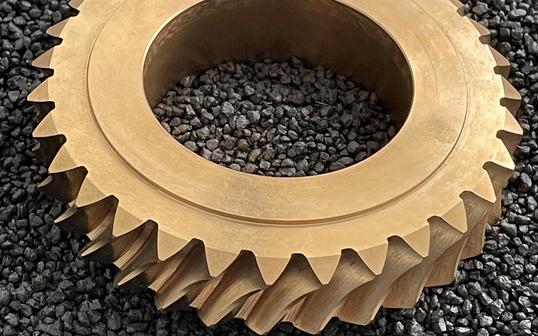

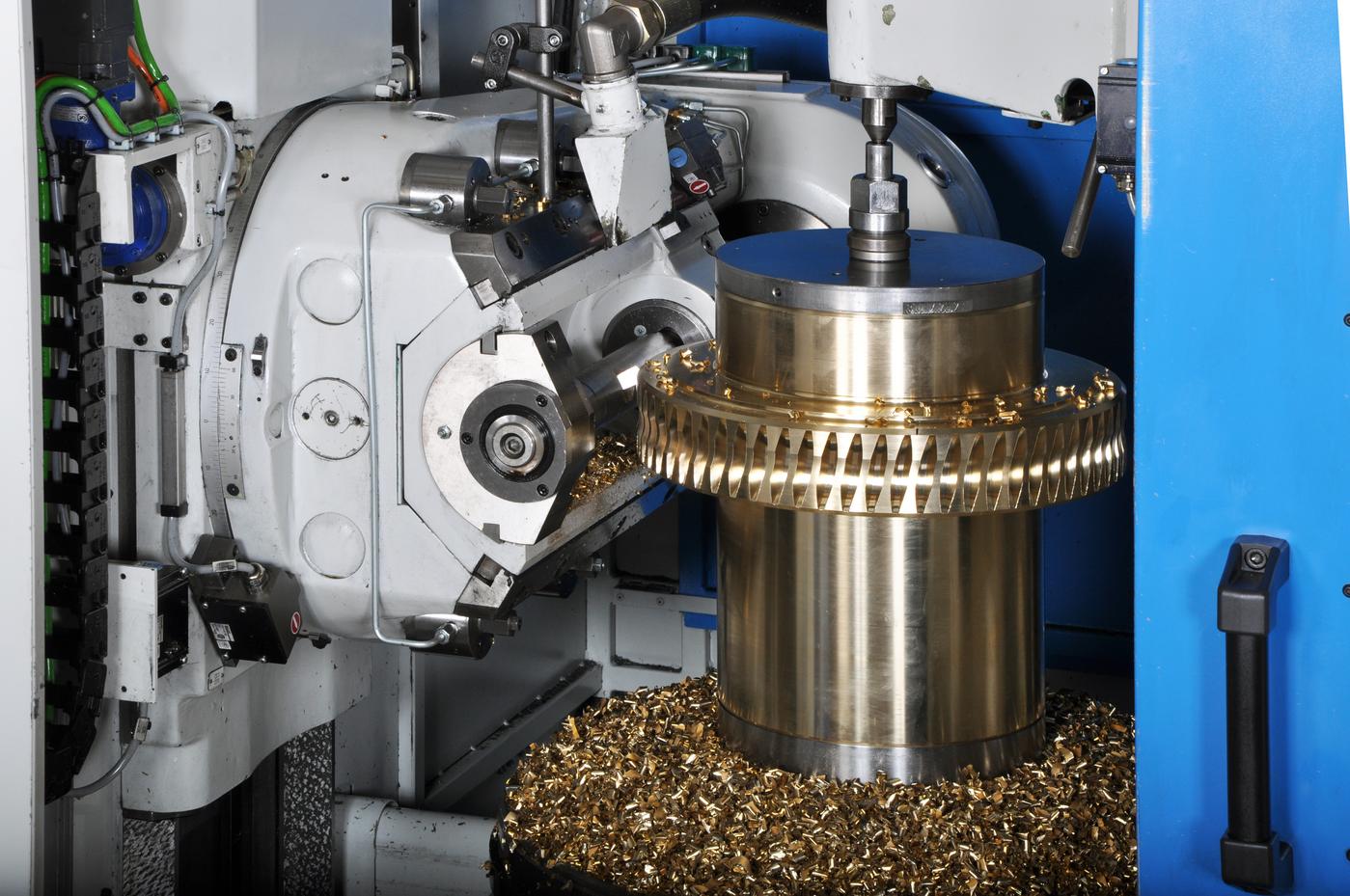

Worm Wheels

Modules

of 1 to 14

Diameters

from 15 mm up to 630 mm

Please Note

Center distance up to 450 mm
