Stainless steel custom toothed rack

Toothed Racks

Being a manufacturer of high-quality drive components, the product range of Heinrich Höner also includes high quality toothed racks.

Toothed racks of quality and precision

We produce both measuring and transport toothed racks up to module 18 consecutively according to DIN, but also modified partitions according to customer needs – be it 2, 5 or 10 mm. We offer transport toothed racks in user-defined lengths and helix angles of 0 – 30 degrees. Measuring toothed racks, however, are produced with a maximum length of 2000 mm and a partition accuracy of +/- 0.05 mm per 500 mm.

Modules

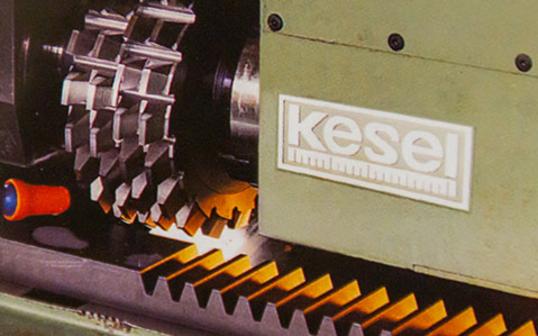

Rack - straight toothed - is milled
Modules

of 0.5 – 18.0

Partitions

of 2, 5 or 10 mm

Transport toothed racks

Length user-defined
Helix angle of 0 – 30 degrees

Measuring toothed racks

Length of up to 2000 mm
Partition accuracy of +/- 0.05 mm per 500 mm

Contact us

We are available to answer your questions, by phone or email. We would also be pleased to call you back.
