Worm shafts produced in contract manufacturing

Contract manufacturing

We manufacture drive elements according to your specifications.

Complete production / contract manufacturing

We manufacture drive elements according to your specifications. All we need to manufacture your geared parts is a drawing, a 3D step file or even a sample. We manufacture your drive elements in individual or series production. We manufacture gears, spur gears, pinion shafts, bevel gears, racks, sprockets, worm gears and worm shafts according to your requirements. We see ourselves as your extended workbench and as a supporter in production, projects, outsourcing and the manufacture of prototypes.

We carry out all work steps ourselves, such as purchasing materials, sawing, turning, drilling, gear cutting and milling, as well as grinding and measuring, according to strict, certified standards.

Contract manufacturing

We also offer individual work steps on request. These include turning, creating drilling patterns, milling and slotting gears, grooving, broaching and grinding holes, threads and gears. In this case, you bring your prefabricated component with you. If required, we can also carry out complete production using the material you provide.

Our drive elements are manufactured with the highest standards of quality, precision and adherence to deadlines. We use modern CNC machines as well as conventional machines and employ very well-trained specialists.

Contract manufacturing and contract manufacturing of gears / spur gears

As a manufacturer of your gear parts, we offer milled gears from module 0.3 to 18.0. In addition, gears with a diameter of 15 mm to 1,250 mm can be geared. With involute gearing, we can offer you any profile shift you require as an external manufacturer. Gears with any helix angle can be manufactured up to quality 7 in accordance with DIN 3962/67. Höner, as your complete manufacturer, also offers you tapered, conical or crowned gearing according to drawings. Manufacturing a gear according to a sample is also possible.

Grinded gears could be manufactured from module of 0.7 to 18.0. The helix angle can vary between 0 and 45°. In this range we can produce diameters from 15 mm to 700 mm. With involute gearing, modifications of height and width crowning as well as very low roughness values can be implemented. This enables qualities up to class 4 according to DIN 3926/67 to be achieved. Our company offers you the manufacture of ground gears as part of contract manufacturing and complete production.

Another way we can produce gears is gear shaping. Sometimes it is not possible to use a hob when producing gears. Some examples are internal gears or special splines with specific pressure angles of 30° in accordance with DIN 5480/5481 and ISO 14. Höner can also produce these special gears for you through outsourcing or as an extended workbench.

More about gears / spur gears

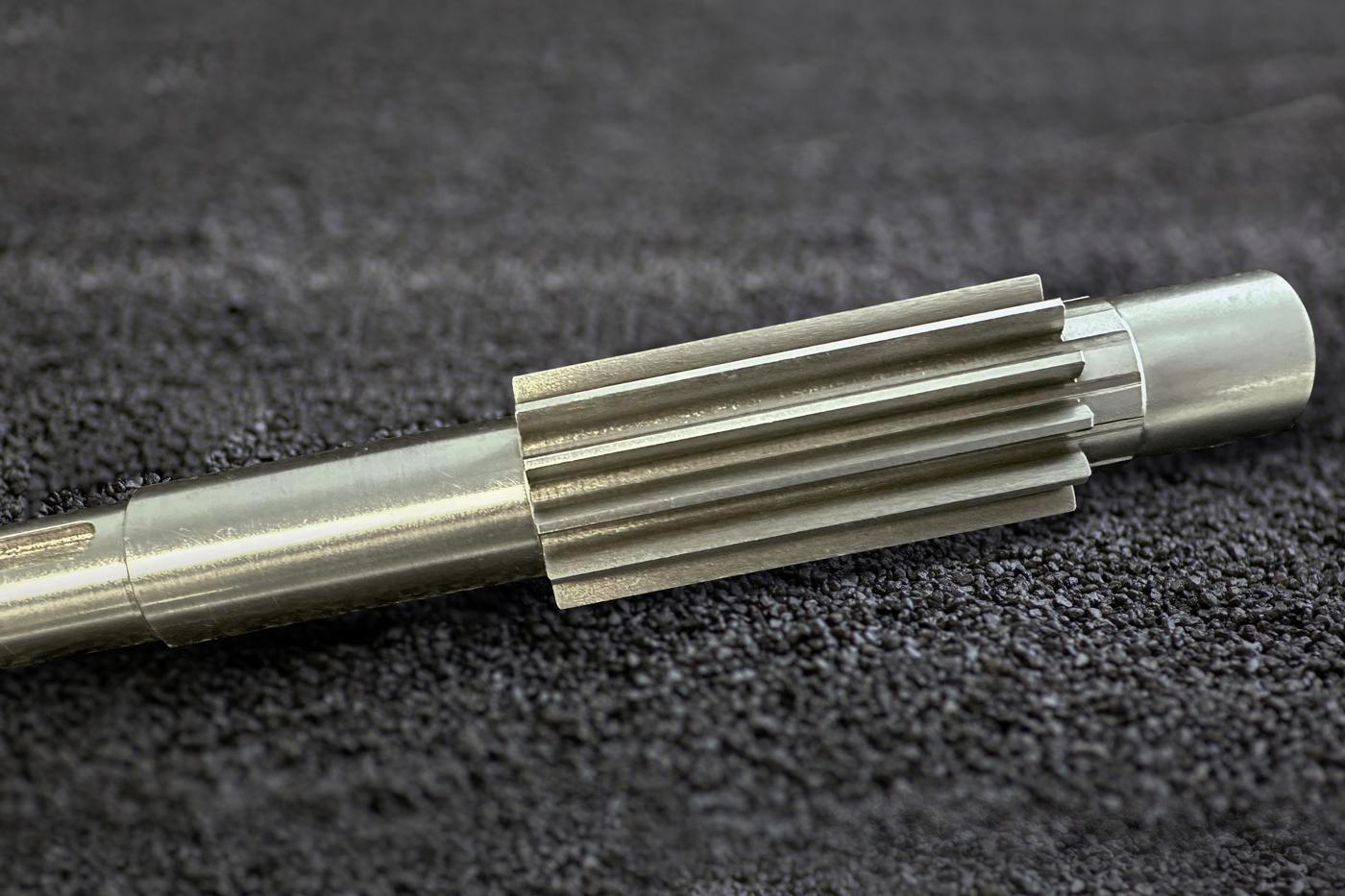

Complete production / contract manufacturing of milled pinion shafts

As a contract manufacturer for drive technology, we offer the production of milled pinion shafts in modules from 0.3 to 18.0. We can produce these drive elements in diameters from 15 mm to 1,250 mm and in lengths of up to 3,000 mm. The profiles of the involute gearing can be corrected both positively and negatively. Any helix angle can be produced according to customer requirements. The tooth shape of the pinion can be milled both conically and crowned. The quality of the gearing can be up to 7 according to DIN 3962/67.

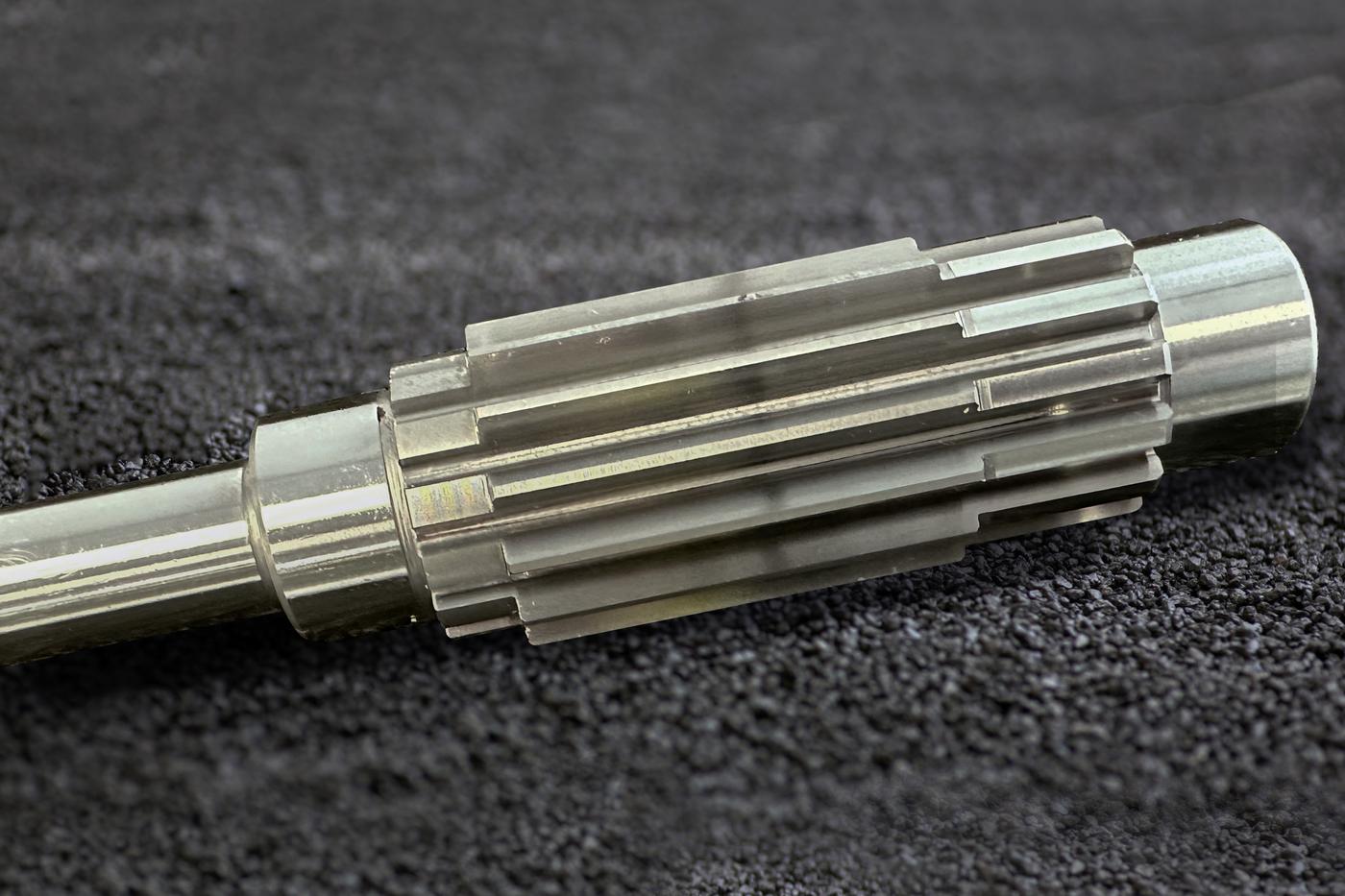

Complete production / contract manufacturing of grinded pinion shafts

As a complete manufacturer of drive elements, we also offer ground pinion shafts. As with spur gears, the pinions can have a module of 0.7 to 18.0. Diameters of 15 mm to 700 mm and lengths of up to 750 mm can be ground according to your drawing. We will of course provide you with the necessary reports on request. By grinding the pinion, we can guarantee our customers a gear quality of 5 (4) in accordance with DIN 3962/67.

Complete production / contract manufacturing of bevel gears

Höner, as a contract manufacturer for bevel gears, can produce them for you in modules from 1 – 10. The maximum outside diameter is 600 mm. With our 5-axis milling machine, we are even able to mill a special construction up to a module of 14.0. The axis angles can vary from 10° to 180°. The maximum pitch cone length is 300 mm. As a complete manufacturer, Höner can offer you bevel gears with a transmission ratio of 1:1 to 1:10.

More about bevel gears

Complete production / contract manufacturing of sprockets

Höner, as your subcontractor for the manufacture of sprockets, can offer you sprocket toothing in pitch 6.0 to 50.8. Diameters from 15 mm to 1,250 mm can be manufactured on a contract basis. The contract manufacturer Höner can shape or hobbing your sprockets.

More about sprockets

Complete production / contract manufacturing of worm gears and worm shafts

Höner offers complete production of worm gears with a module of 1.0 to 14.0. Axle distances of up to 265 mm are possible. The worm gears can be manufactured according to a drawing, 3D step file or sample. The worms (shafts) are necessary so that the rolling of worm gears can be tested.

Höner also offers the worm shaft as a contract manufacturing or complete production with a module of 1.0 to 14.0 corresponding to the worm wheel. The maximum diameter of the worm is 320 mm. Pitch angles of up to 40° can be manufactured with a pitch of 0.25 - 315 mm. Possible manufacturing processes for producing a worm are milling, whirling and grinding.

More about worm gears

Complete production / contract manufacturing of profile shafts and splined shafts

Höner is happy to produce splined and profiled shafts as your extended workbench. Gearings can be completely manufactured in accordance with DIN 5463, ISO 14, DIN 5472, DIN 5480, DIN 5481, DIN 5482, DIN 9611 / ISO 500. The profiled shafts and splined shafts can be milled up to a length of 3,000 mm and ground up to a length of 750 mm.

More about profile shafts and splined shafts

Complete production / contract manufacturing of racks

Our production program includes gear racks among the gearing parts. These can be milled with a module of 0.5 to 18.0. A pitch of 2, 5 and 10 mm is possible. As a gear cutter, we offer contract manufacturing of gear racks in the following two variants:

  • Transport racks of any length and with a helix angle of 0 – 30 °
  • Measuring racks with a maximum length of 2,000 mm and a pitch accuracy of +/- 0.05 mm per 500 mm length

More about gear racks

Complete production / contract manufacturing of trapezoidal threads and spindles

As a contract manufacturer, we produce spindles with a diameter of 30 - 100 mm according to your specifications. We can produce thread lengths of up to 2,600 mm by whirling, turning or milling. Different thread types, such as trapezoidal threads, metric threads, cylindrical threads, Whitworth threads or tapered threads are no problem for us. Grinding these threads is possible up to a maximum length of 500 mm. The thread pitch can be selected on the left or right.

More about trapezoidal threads and spindles

Complete production / contract manufacturing of timing belt gears

Our gear manufacturing also offers the production of timing belt gears and timing belt wheels as part of contract manufacturing. Höner can hobbing tooth pitches T5, T10, AT10, XL -1/5", L - 3/8", H -1/2", among others.

More about timing belt gears

Internal gears

Höner also offers individual partial services in contract manufacturing, such as the production of internal gearing. Internal gearing can be manufactured in accordance with DIN 5463, ISO 14, DIN 5472, DIN 5480, DIN 5481, DIN 5482, DIN 9611, ISO 500. All you need to do is provide us with your pre-turned blanks for further processing. Internal gearing can be broached, slotted or gear-shaping depending on availability and the desired quality. We are unique in that we can grind straight and slanted internal gearing depending on the selected module and diameter.

More about internal gears

This is a small excerpt from the contract manufacturing program of Heinrich Höner GmbH & Co. KG. Please feel free to contact us to receive your individual offer. We look forward to your inquiry.
